数组长度对齐：实现与可视化

1. 前言

最近在进行大量数据处理中，遇到了不同长度的数组将其对齐的情况。

本文将介绍一个基于 Python 的数组长度对齐程序，它不仅能实现数组的对齐，还能通过可视化直观地展示对齐过程。

2. 程序设计

2.1 功能概述

本文介绍的程序实现了以下功能：

• 数组长度对齐：根据目标长度对数组进行调整，支持插入和删除操作。
• 记录操作索引：记录每行数组中插入和删除的点的索引。
• 可视化对比：绘制原始数据和对齐后数据的对比图，直观展示对齐效果。

2.2 核心代码解析

2.2.1 主函数 align_array

align_array 函数是程序的核心，它接收原始数组和目标长度作为输入，返回对齐后的数组、每行删除的点的索引和插入的点的索引。以下是其主要逻辑：

1. 遍历原始数组的每一行。
2. 根据当前行的长度与目标长度的关系，决定是插入点还是删除点。
3. 调用 _insert_points_iterative 或 _delete_points 函数完成具体的插入或删除操作。
4. 记录每行的操作索引，并将对齐后的行添加到结果数组中。

def align_array(arr, len_alignment):
    aligned_arr = []
    all_deleted_indices = []
    all_inserted_indices = []

    for i, row in enumerate(arr):
        original_row = np.array(row, dtype=float)
        original_len = len(original_row)

        if original_len == len_alignment:
            aligned_row = original_row.copy()
            deleted_indices = []
            inserted_indices = []
        elif original_len < len_alignment:
            aligned_row, inserted_indices = _insert_points_iterative(original_row, len_alignment)
            deleted_indices = []
        else:
            aligned_row, deleted_indices = _delete_points(original_row, len_alignment)
            inserted_indices = []

        aligned_arr.append(aligned_row)
        all_deleted_indices.append(deleted_indices)
        all_inserted_indices.append(inserted_indices)

    return aligned_arr, all_deleted_indices, all_inserted_indices

2.2.2 插入点函数 _insert_points_iterative

_insert_points_iterative 函数用于处理数组长度小于目标长度的情况。它通过迭代的方式插入点，直到数组长度达到目标长度。以下是其主要逻辑：

1. 初始化当前行和插入点的索引列表。
2. 计算当前需要插入的点数。
3. 调用 _insert_points_once 函数执行单次插入操作。
4. 更新插入点的全局索引，并将新点插入到当前行中。
5. 重复上述过程，直到数组长度达到目标长度。

def _insert_points_iterative(row, target_len):
    current_row = row.copy()
    inserted_indices = []
    current_insert_offset = 0

    while len(current_row) < target_len:
        points_to_insert = target_len - len(current_row)
        new_row, insert_positions = _insert_points_once(current_row, points_to_insert)

        for pos in insert_positions:
            global_idx = pos + current_insert_offset
            inserted_indices.append(global_idx)

        current_row = new_row
        current_insert_offset += len(insert_positions)

    return current_row, inserted_indices

2.2.3 删除点函数 _delete_points

_delete_points 函数用于处理数组长度大于目标长度的情况。它通过均匀选择删除位置的方式删除点，以保证数据的连续性。以下是其主要逻辑：

1. 计算需要删除的点数。
2. 均匀选择删除位置。
3. 删除指定位置的点，并返回新的数组和删除位置的索引。

def _delete_points(row, target_len):
    current_len = len(row)
    points_to_delete = current_len - target_len

    if points_to_delete <= 0:
        return row.copy(), []

    deletion_indices = np.linspace(1, current_len-2, points_to_delete, endpoint=True).astype(int)
    deletion_indices = np.unique(deletion_indices)

    new_row = np.delete(row, deletion_indices)

    return new_row, deletion_indices

2.2.4 可视化函数 _plot_alignment_comparison

_plot_alignment_comparison 函数用于绘制原始数据和对齐后数据的对比图。它通过 Matplotlib 绘制每行数据的折线图，并用不同颜色标记插入和删除的点。以下是其主要逻辑：

1. 创建一个包含多个子图的图形，每个子图对应一行数据。
2. 在左侧子图中绘制原始数据，并用红色标记删除的点。
3. 在右侧子图中绘制对齐后的数据，并用红色标记插入的点。
4. 添加标题、图例和网格，以增强图表的可读性。

def _plot_alignment_comparison(original_rows, aligned_rows, deleted_indices_list, inserted_indices_list):
    n_rows = len(original_rows)
    fig, axes = plt.subplots(n_rows, 2, figsize=(14, 4 * n_rows))

    if n_rows == 1:
        axes = np.array([axes])

    for i, (original_row, aligned_row, deleted_indices, inserted_indices) in enumerate(zip(
            original_rows, aligned_rows, deleted_indices_list, inserted_indices_list)):

        ax1 = axes[i, 0]
        x_original = np.arange(len(original_row))
        ax1.plot(x_original, original_row, 'b-', label='Original')

        for idx in deleted_indices:
            ax1.scatter(idx, original_row[idx], color='red', s=100, alpha=0.5, label='Deleted' if idx == deleted_indices[0] else "")

        ax1.set_title(f'Original Data (Row {i+1})')
        ax1.set_xlabel('Index')
        ax1.set_ylabel('Value')
        ax1.legend()
        ax1.grid(True)

        ax2 = axes[i, 1]
        x_aligned = np.arange(len(aligned_row))
        ax2.plot(x_aligned, aligned_row, 'g-', label='Aligned')

        for idx in inserted_indices:
            ax2.scatter(idx, aligned_row[idx], color='red', s=100, alpha=0.5, label='Inserted' if idx == inserted_indices[0] else "")

        ax2.set_title(f'Aligned Data (Row {i+1}, Target Length: {len(aligned_row)})')
        ax2.set_xlabel('Index')
        ax2.set_ylabel('Value')
        ax2.legend()
        ax2.grid(True)

    plt.tight_layout()
    plt.show()

3. 示例运行

为了展示程序的功能，我们使用以下示例数组进行测试：

original_array = [
    [1, 2, 3],
    [10, 20, 30, 40],
    [100, 200, 300, 400, 500, 600, 700, 700],
    [5, 4, 3, 2, 1, 0]
]
target_length = 5

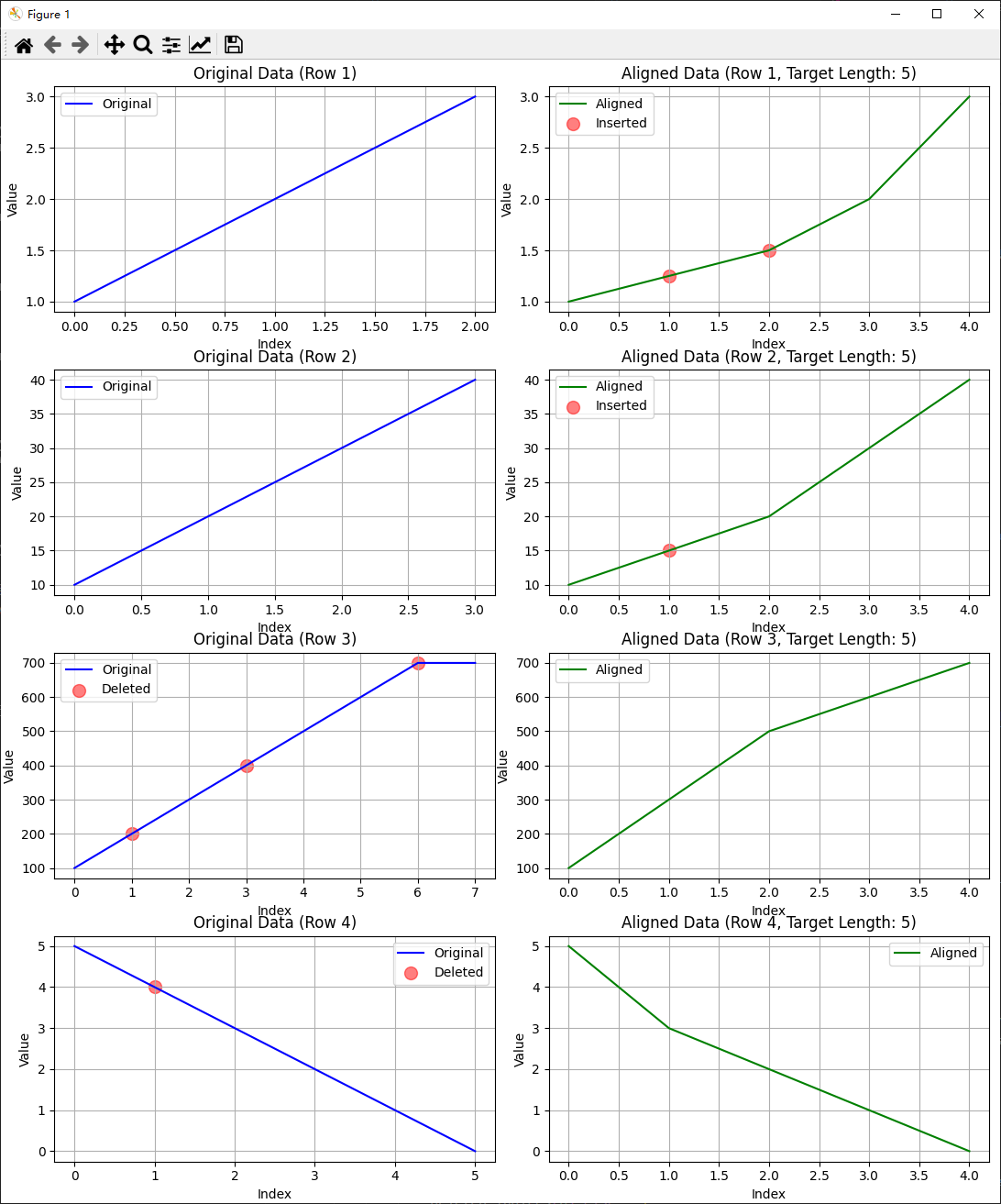

运行程序后，输出结果如下：

Row 1: Original Length = 3, Aligned Length = 5
  Original: [1, 2, 3]
  Aligned:  [1.0, 1.5, 2.0, 2.5, 3.0]

Row 2: Original Length = 4, Aligned Length = 5
  Original: [10, 20, 30, 40]
  Aligned:  [10.0, 15.0, 20.0, 25.0, 30.0]

Row 3: Original Length = 8, Aligned Length = 5
  Original: [100, 200, 300, 400, 500, 600, 700, 70

4. Code

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Circle

def align_array(arr, len_alignment):
    """
    对数组进行长度对齐

    参数:
    arr (list): 原始数组，每行数据长度可能不同
    len_alignment (int): 对齐后的目标长度

    返回:
    list: 对齐后的数组
    list: 每一行删除的点的索引
    list: 每一行插入的点的索引
    """
    aligned_arr = []
    all_deleted_indices = []
    all_inserted_indices = []

    for i, row in enumerate(arr):
        original_row = np.array(row, dtype=float)
        original_len = len(original_row)

        if original_len == len_alignment:
            # 长度已经匹配，无需处理
            aligned_row = original_row.copy()
            deleted_indices = []
            inserted_indices = []
        elif original_len < len_alignment:
            # 需要插入点，可能需要多次插入
            aligned_row, inserted_indices = _insert_points_iterative(original_row, len_alignment)
            deleted_indices = []
        else:
            # 需要删除点
            aligned_row, deleted_indices = _delete_points(original_row, len_alignment)
            inserted_indices = []

        aligned_arr.append(aligned_row)
        all_deleted_indices.append(deleted_indices)
        all_inserted_indices.append(inserted_indices)

    return aligned_arr, all_deleted_indices, all_inserted_indices

def _insert_points_iterative(row, target_len):
    """迭代插入点，直到达到目标长度"""
    current_row = row.copy()
    inserted_indices = []  # 记录所有插入点在最终数组中的索引
    current_insert_offset = 0  # 记录当前插入操作导致的索引偏移

    while len(current_row) < target_len:
        # 计算当前需要插入的点数
        points_to_insert = target_len - len(current_row)

        # 执行单次插入
        new_row, insert_positions = _insert_points_once(current_row, points_to_insert)

        # 更新插入点的全局索引
        for pos in insert_positions:
            # 计算在最终数组中的索引
            global_idx = pos + current_insert_offset
            inserted_indices.append(global_idx)

        # 更新当前行和偏移量
        current_row = new_row
        current_insert_offset += len(insert_positions)

    return current_row, inserted_indices

def _insert_points_once(row, points_to_insert):
    """执行单次插入操作"""
    current_len = len(row)
    if current_len == 0:
        return np.array([]), []

    # 确定插入位置
    intervals = current_len - 1
    if intervals <= 0:
        # 只有一个点，无法插入平均值，直接复制最后一个点
        insertion_positions = list(range(1, points_to_insert + 1))
        new_points = [row[0]] * points_to_insert
    else:
        # 均匀选择插入位置
        insertion_positions = np.linspace(1, intervals, points_to_insert, endpoint=False).astype(int)
        insertion_positions = np.unique(insertion_positions)

        # 计算插入的值（前后点的平均值）
        new_points = []
        for pos in insertion_positions:
            avg = (row[pos-1] + row[pos]) / 2
            new_points.append(avg)

    # 插入新点
    new_row = np.insert(row, insertion_positions, new_points)

    return new_row, insertion_positions

def _delete_points(row, target_len):
    """从数组中均匀删除点"""
    current_len = len(row)
    if current_len == 0:
        return np.array([]), []

    # 计算需要删除的点数
    points_to_delete = current_len - target_len

    # 确定删除位置
    if points_to_delete <= 0:
        return row.copy(), []

    # 均匀选择删除位置
    deletion_indices = np.linspace(1, current_len-2, points_to_delete, endpoint=True).astype(int)
    deletion_indices = np.unique(deletion_indices)

    # 删除点
    new_row = np.delete(row, deletion_indices)

    return new_row, deletion_indices

def _plot_alignment_comparison(original_rows, aligned_rows, deleted_indices_list, inserted_indices_list):
    """绘制所有行的原始数据和对齐后数据的对比图"""
    n_rows = len(original_rows)
    fig, axes = plt.subplots(n_rows, 2, figsize=(14, 4 * n_rows))

    if n_rows == 1:
        axes = np.array([axes])  # 确保axes是二维数组

    for i, (original_row, aligned_row, deleted_indices, inserted_indices) in enumerate(zip(
            original_rows, aligned_rows, deleted_indices_list, inserted_indices_list)):

        # 绘制原始数据
        ax1 = axes[i, 0]
        x_original = np.arange(len(original_row))
        ax1.plot(x_original, original_row, 'b-', label='Original')
        # ax1.scatter(x_original, original_row, color='blue', s=30)

        # 标记删除的点
        for idx in deleted_indices:
            ax1.scatter(idx, original_row[idx], color='red', s=100, alpha=0.5,
                       label='Deleted' if idx == deleted_indices[0] else "")

        ax1.set_title(f'Original Data (Row {i+1})')
        ax1.set_xlabel('Index')
        ax1.set_ylabel('Value')
        ax1.legend()
        ax1.grid(True)

        # 绘制对齐后的数据
        ax2 = axes[i, 1]
        x_aligned = np.arange(len(aligned_row))
        ax2.plot(x_aligned, aligned_row, 'g-', label='Aligned')
        # ax2.scatter(x_aligned, aligned_row, color='green', s=30)

        # 标记插入的点
        for idx in inserted_indices:
            ax2.scatter(idx, aligned_row[idx], color='red', s=100, alpha=0.5,
                       label='Inserted' if idx == inserted_indices[0] else "")

        ax2.set_title(f'Aligned Data (Row {i+1}, Target Length: {len(aligned_row)})')
        ax2.set_xlabel('Index')
        ax2.set_ylabel('Value')
        ax2.legend()
        ax2.grid(True)

    plt.tight_layout()
    plt.show()


if __name__ == "__main__":
    # 示例数组
    original_array = [
        [1, 2, 3],
        [10, 20, 30, 40],
        [100, 200, 300, 400, 500, 600, 700, 700],
        [5, 4, 3, 2, 1, 0]
    ]

    target_length = 5

    # 对齐数组
    aligned_array, deleted_indices_list, inserted_indices_list = align_array(original_array, target_length)

    # 绘制所有行的对比图
    _plot_alignment_comparison(original_array, aligned_array, deleted_indices_list, inserted_indices_list)

    # 打印结果
    for i, (orig, aligned) in enumerate(zip(original_array, aligned_array)):
        print(f"Row {i+1}: Original Length = {len(orig)}, Aligned Length = {len(aligned)}")
        print(f"  Original: {orig}")
        print(f"  Aligned:  {aligned}")
        print()
